Smittybilt X20 GEN2 Winch

FROM: $670.00 USD

CONFIRM THIS ITEM FITS YOUR TRUCK:

Select an option…

Steel Synthetic Rope

  • Free Shipping

    This product qualifies for free shipping.

  • Fast Fulfillment
  • Military Discount

    For all active, reservist, veteran, and retired U.S. military personnel.

    Verify Military Status

Product Details

The Smittybilt X2O Gen 2 Winches have been enhanced in almost every area for increased performance and trouble-free operation. Every X2O winch features a Series Wound 6.6 HP motor that is completely sealed, as well as a 3-Stage Planetary Gear System. The X2O line features a completely waterproof 500 AMP solenoid pack that can be mounted in 2 different locations, depending on your application needs. They also include a new controller that can be wired to the winch or unplugged for trouble-free wireless operation. The X2O also features optimized gear ratios that are lightning-fast line speeds. If you're looking for something more versatile, check out the X2O Comp Series, which includes all of the features and benefits of the original series, and adds a synthetic winch rope. And finally, all X2O winches are covered by the Smittybilt Lifetime Warranty, providing peace of mind as well as unparalleled performance. With all of these features, you can count on the X2O winch to be there every time, in every situation.

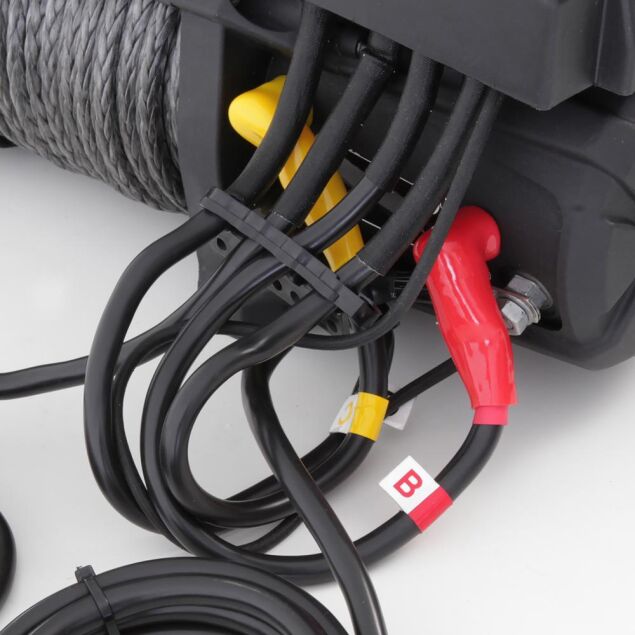

  • Battery Leads: 25mm2, 72”(1.83m)1
  • Finish: Textured Black
  • Gear Ratio: 218:1 or 430:1
  • Motor: 6.6hp Series Wound
  • Mounting Bolt Pattern: 10.0” x 4.50”
  • Cable: 98.5’ 3/8” Diameter Steel or Synthetic
  • 5-Year Electrical / Limited Lifetime Mechanical Warranty
  • Brake: Automatic Out-Of-Drum
  • Rated Line Pull: 10,000Lbs (4,545kgs) Single Line or 17,500Lbs (7,954kgs) Single Line
  • Remote Control: Included
  • Recommended Battery: 650CCA Minimum for Winching
  • Control: Remote Switch, 12’ (3.7m) lead
  • Weight: 67.0Lbs (30.4Kgs) or 150.0Lbs (45.0Kgs)
  • Waterproofing: IP68 Rating
  • Fairlead: 4-Way Roller or Hawse
  • Drum Size: Diameter 3.45”
  • Overall Dimensions:(L x W x H) 22.3" x 5.4" x 9.4" or (L x W x H) 22.3” x 7.5” x 10.7”
  • Clutch: Sliding Ring Gear
  • Gear Train: 3-Stage Planetary

Warranty

For over 60 years, Smittybilt has been the brand customers trust to outfit their Jeeps with reliable, functional accessories. Our products are developed and tested by passionate off-roaders and made to withstand the roughest, toughest treatment on the trail. We understand the wear and tear these products will be subject to and our goal is to provide a comprehensive warranty to gives you confidence that the products you are outfitting your rig with will last for seasons to come. That’s the Smittybilt Advantage!

Hard Goods Warranty

Our products are built to last that’s why all Smittybilt’s steel-based products, such as bumpers, sides, steps and armor are warranted to be free from defect and are backed by a lifetime structural warranty, and a 5-year finish warranty.

Winches

Smittybilt’s X20 GEN3 Winches, XRC GEN3 Winches and previous generations of X20 winches carry a lifetime mechanical warranty and a 5-year electrical warranty. XRC GEN2 Winches and all other Smittybilt Winches carry a lifetime mechanical warranty with a 3-year electrical warranty.

Soft Goods Warranty

Unless otherwise listed specifically, Smittybilt warrants our soft tops and other soft goods for a period of 1-year.

Tents

Smittybilt takes pride in our line of overlanding tents and accessories and is proud to offer a 5-year limited warranty on our Hard-Shell Popup Tents, 2-year limited warranty on our GEN2 Overlander Rooftop Tents and a 1-year limited warranty on our GEN1 Overlander Rooftop Tents.
