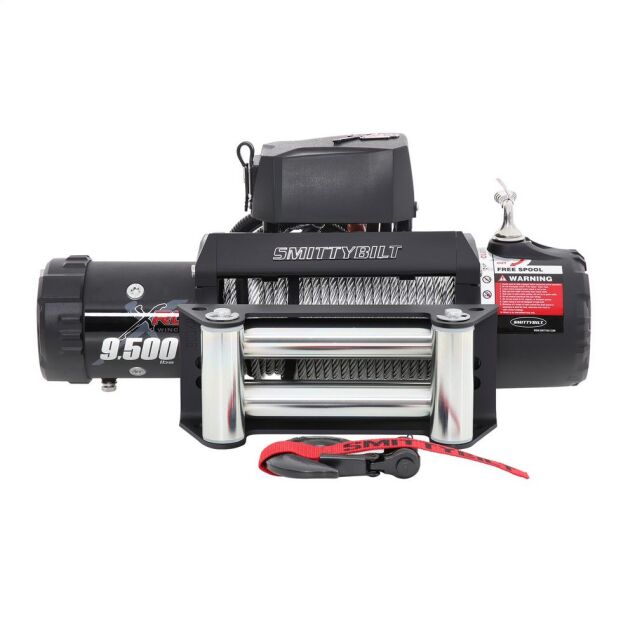

The Smittybilt XRC Gen 2 winches have been thoroughly updated with heavy-duty features for enhanced performance and durability. Ranging from 9,500lb to 17,500 lbs capacities, Smittybilt's XRC series winches can handle any situation you can get into. Every XRC winch features a series wound 6.6 hp motor and a 3-stage planetary gear system with revised gear ratios for increased pulling power and lightning-fast line speeds. Every winch is offered in a sleek and stylish finish, including a rugged UV-resistant matte black coating with stainless steel hardware and oversized Aluminum crossbars to provide you with a great looking system that ensure last you a lifetime. Every XRC winch includes a heavy duty winch controller, four-way roller fairlead, forged steel tow hook, and a redesigned solenoid box that can be mounted in 3 different positions for maximum versatility. If you're looking for a winch equipped with a synthetic winch rope, look to the XRC Comp Series for the ultimate in pulling power and performance. A Smittybilt XRC winch is a complete recovery system with the muscle and reliability to bail you out of any situation.

Sliding ring gear clutch
3-Year Electrical / Limited-Lifetime Mechanical Warranty
6.6HP series-wound motor
4-way roller fairlead
Bolt Pattern: 10" x 4.5 "
Weight 99lbs
Wired remote control with 11.5' Lead
5/16" x 93.5' steel cable
Recommended Battery: 650CCA minimum for winching
2.5" drum diameter
161.28:1 gear ratio
3-stage planetary gearbox
5' battery power cables
Rated Line Pull: 9,500Lbs (4,309kgs) single-line
IP67 waterproof
Dimensions: 22.3" L x 5.4" W x 9.4" H
Brake: Automatic In-Drum

Warranty

For over 60 years, Smittybilt has been the brand customers trust to outfit their Jeeps with reliable, functional accessories. Our products are developed and tested by passionate off-roaders and made to withstand the roughest, toughest treatment on the trail. We understand the wear and tear these products will be subject to and our goal is to provide a comprehensive warranty to gives you confidence that the products you are outfitting your rig with will last for seasons to come. That’s the Smittybilt Advantage!

Hard Goods Warranty

Our products are built to last that’s why all Smittybilt’s steel-based products, such as bumpers, sides, steps and armor are warranted to be free from defect and are backed by a lifetime structural warranty, and a 5-year finish warranty.

Winches

Smittybilt’s X20 GEN3 Winches, XRC GEN3 Winches and previous generations of X20 winches carry a lifetime mechanical warranty and a 5-year electrical warranty. XRC GEN2 Winches and all other Smittybilt Winches carry a lifetime mechanical warranty with a 3-year electrical warranty.

Soft Goods Warranty

Unless otherwise listed specifically, Smittybilt warrants our soft tops and other soft goods for a period of 1-year.

Tents

Smittybilt takes pride in our line of overlanding tents and accessories and is proud to offer a 5-year limited warranty on our Hard-Shell Popup Tents, 2-year limited warranty on our GEN2 Overlander Rooftop Tents and a 1-year limited warranty on our GEN1 Overlander Rooftop Tents.
